PERFORMANCE
MADE PORTABLE.

OUR COMPACT ALL-IN-ONE CABLE DRUM AND REHABILITATION UNIT

THE MOBILE COMMAND CENTER.

The UVS150P is the only UV compact unit that operates without a vehicle installation. Portable on wheels and instantly ready wherever the job site demands.With 12,000 W total output and 150 m of special cable, it covers the full range from DN150 to DN1600 and is compatible with the light sources UVC60P, UVC120 and UVC160. No special vehicle, no lengthy setup: the UVS150P is operational as soon as it rolls off its vehicle.

EVERYTHING ON BOARD.

The UVS150P brings everything a professional rehabilitation site requires: an integrated air conditioning system keeps cable temperature constant regardless of weather or season, ensuring curing quality is never compromised. Blower control via Ethernet, one-screen operation via Android tablet or PC, status lights for instant operating state recognition on the front panel, and a foldable cable guidance arm. Power supply: 400 V, 32 A CEE.

FULL CONTROL. ANY TIME.

All key process parameters such as surface temperature via IR, air temperature inside the pipe, calibration pressure and pulling speed are displayed live on one screen and fully documented as PDF – audit-proof and verifiable to clients at any time. Remote diagnostics enable fast support without on-site visits, reducing downtime significantly. The operator controls the system flexibly via tablet from the optimal position on site.

DEFINING STANDARDS.

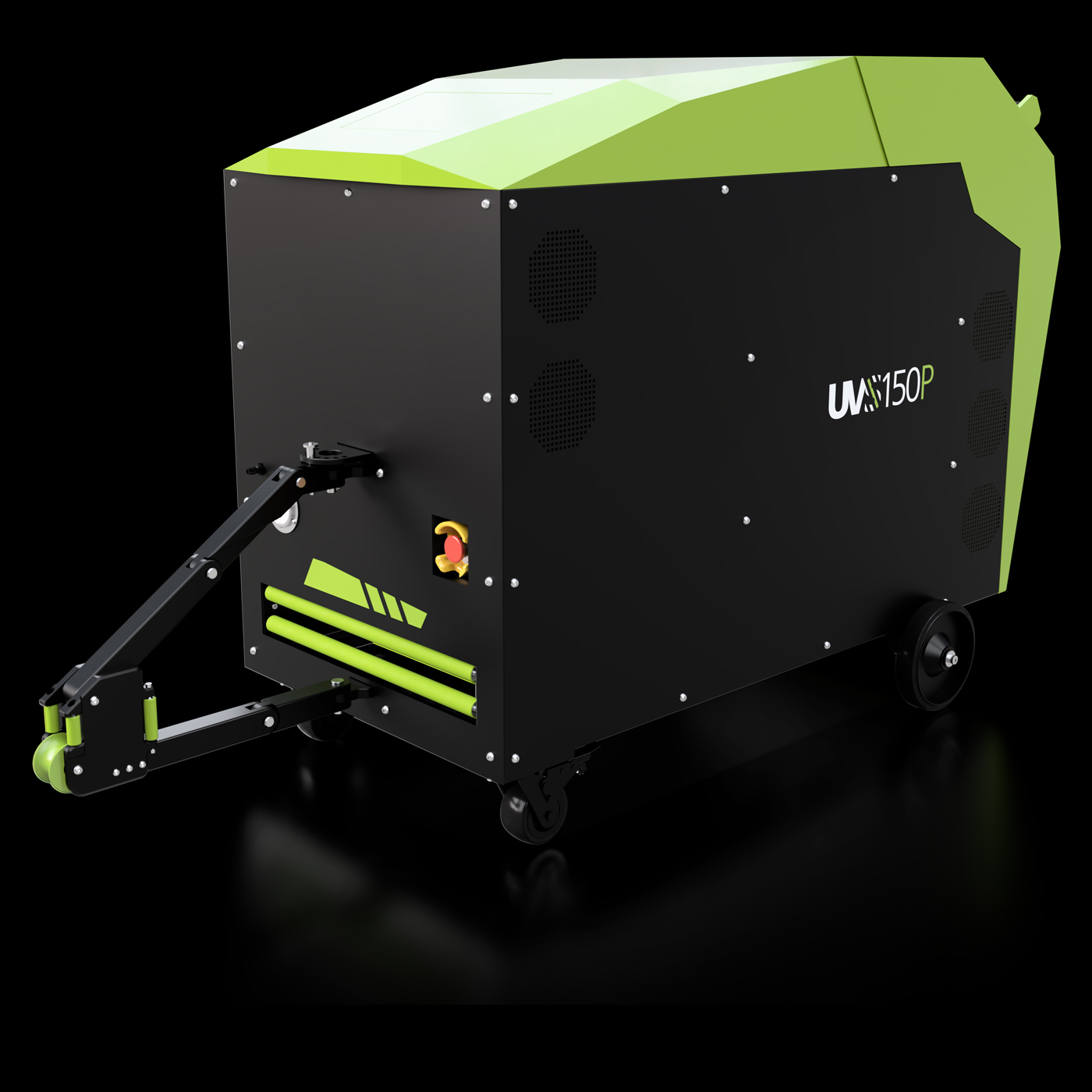

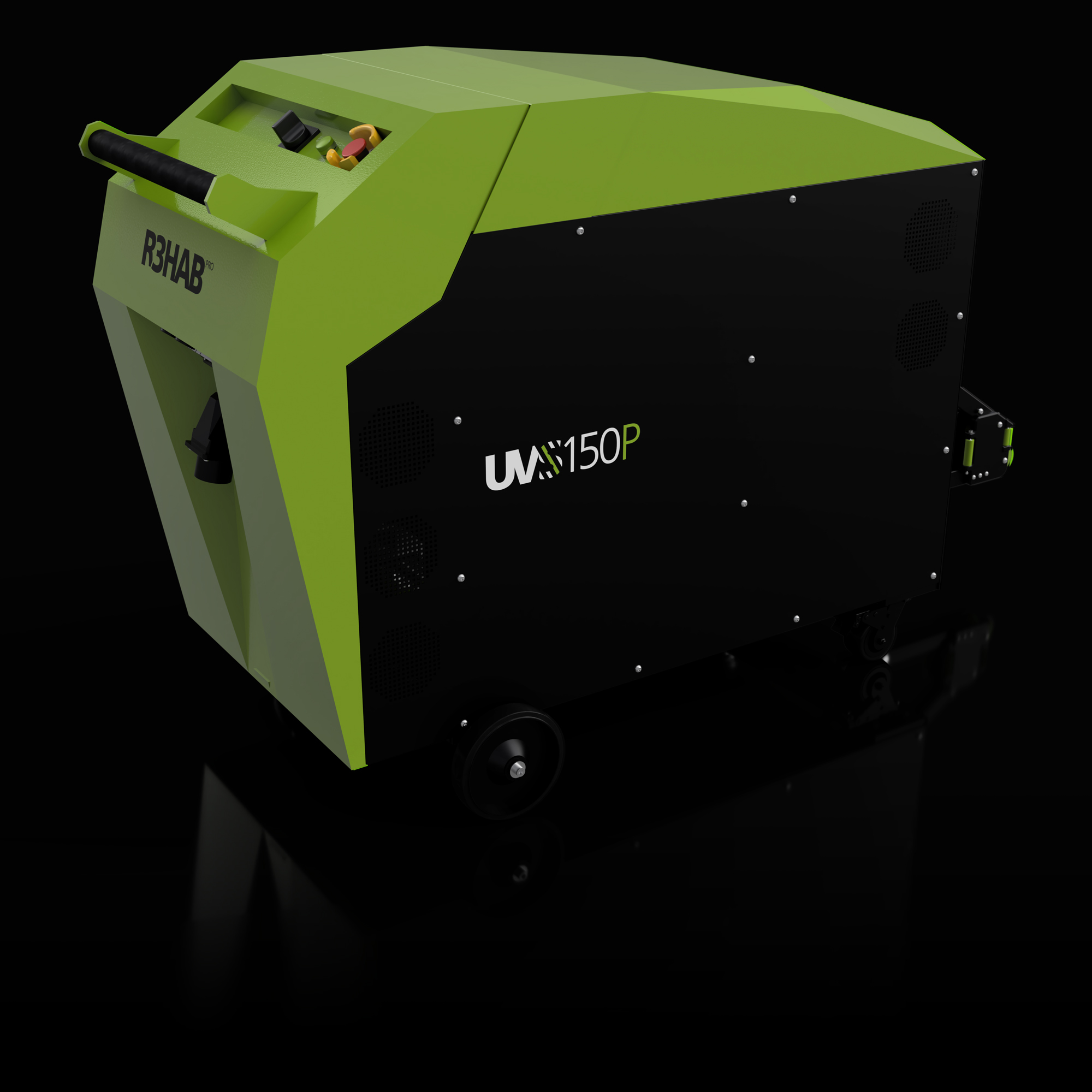

R3HAB UVS150P
PRODUCT: COMPACT PORTABLE UV-SYSTEM
R3HAB.PRO GMBH // P-SERIES // UVS150P //
18.5.812.21223.150.16.2025.05.13

CABLE LENGTH: 150 M (MAX. 200 M)
492 FT (MAX. 656 FT)
ELECTRICAL SUPPLY: 32A, 400 V
MAX. POWER: 2 X 6 X 1000 W (12.000 W)
MOBILE OPERATION VIA TABLET
PC CONNECTION VIA ETHERNET CABLE
BLOWER CONTROL VIA ETHERNET CABLE
USER-FRIENDLY, INTUITIVE SOFTWARE
VISUALIZATION AND DOCUMENTATION
OF ALL CURING PARAMETERS
ONE-SCREEN OPERATION
REMOTE DIAGNOSTIC AND MAINTENANCE MODULE INTEGRATED AIR CONDITIONING FOR TEMPERATURE CONTROL
STATUS LIGHT IN THE FRONT
FOR VISUALIZATION OF OPERATING STATES
FOLDABLE ARM FOR CABLE GUIDANCE
DIMENSIONS: 1450 X 650 X 1110 MM (57″ X 25.6″ X 43.7″)
WEIGHT: ONLY 420 KG (926 LBS)
ONLINE USER MANUAL

APPLICATION

DN150 TO DN1600
SUITABLE FOR UVC60P, UVC120 AND UVC160

ACCESSOIRES

HAND CRANK FOR MANUALLY WINDING THE CABLE

FEATURES

EXTREMELY COMPACT: BUILT FOR MOBILE USE FROM DN150 TO DN1600. INTEGRATED AND FOLDABLE ARM FOR CABLE MANAGEMENT.

POWERFUL: OUTPUT OF 2 X 6 X 1000 W. CABLE LEGTH OF 150 METERS WITH SMALL DIAMETER

RELIABLE:ELECTRONICALLY CONTROLLED BALLASTS (ECG) FOR CONSISTENT LAMP PERFORMANCE. INTEGRATED AIR CONDITIONING FOR CONSTANT TEMPERATURE CONTROL.

VERSATILE:WIDE RANGE OF CONNECTABLE LIGHT SOURCES SUCH AS UVC60P, UVC120 AND UVC160.

MOBILE: OPERATION WITH ANDROID TABLET WITH ALL CURING DATA AT A GLANCE THROUGH MOBILE APP

FLEXIBILE: ETHERNET CONNECTION FOR STATIONARY USE

REMOTE: DIAGNOSTICS AND MAINTENANCE MODULE WITH REMOTE ACCESS.

FULL CONTROL: CURRENT MEASUREMENT AND DISPLAY OF EACH UV LAMP FOR PERFORMANCE MONITORING. STATUS LIGHTS ON THE FRONT PANEL FOR QUICK IDENTIFICATION OF OPERATING STATES.

Intuitive software for control and monitoring Controls

Foldable arm for cable management

TECH SHEET

DOWNLOAD
